15m Blind Spot Monitoring System - 24G Millimeter Wave Radar - AM38
Millimeter-Wave Radar Blind Spot Detection System
Introducing our advanced Millimeter-Wave Radar Blind Spot Detection System, designed to enhance safety for locomotives. With a detection range of up to 15 meters, this system alerts operators to potential hazards in blind spots, ensuring a safer operational environment.
LCA & BSD System
Our Lane Change Assistance (LCA) and Blind Spot Detection (BSD) System enhances driving safety by providing real-time alerts for blind spots and potential lane change hazards.
Extra Vision for Confident Lane Changes
Never worry about changing lanes again with our innovative Millimeter-Wave Blind Spot Detection and Lane Change Assistance System. Whether it's raining, foggy, on the highway, or facing bright headlights at night, this all-weather, all-day system provides you with an extra set of eyes, ensuring secure lane changes in any condition.
Product Features
1. Startup Mode: Power-on activation. After power is on, the radar performs a self-test: the warning light will blink twice and then turn off.
2. Warning Mode: When an object approaches the motorcycle at a relatively faster speed within a 15-meter longitudinal radar signal area, the warning light will start to blink.
Radar Installation Instructions
1. Installation Height: 0.5 to 1.2 meters above the ground.
2. Installation Angle: The radar is fixed perpendicular to the ground.

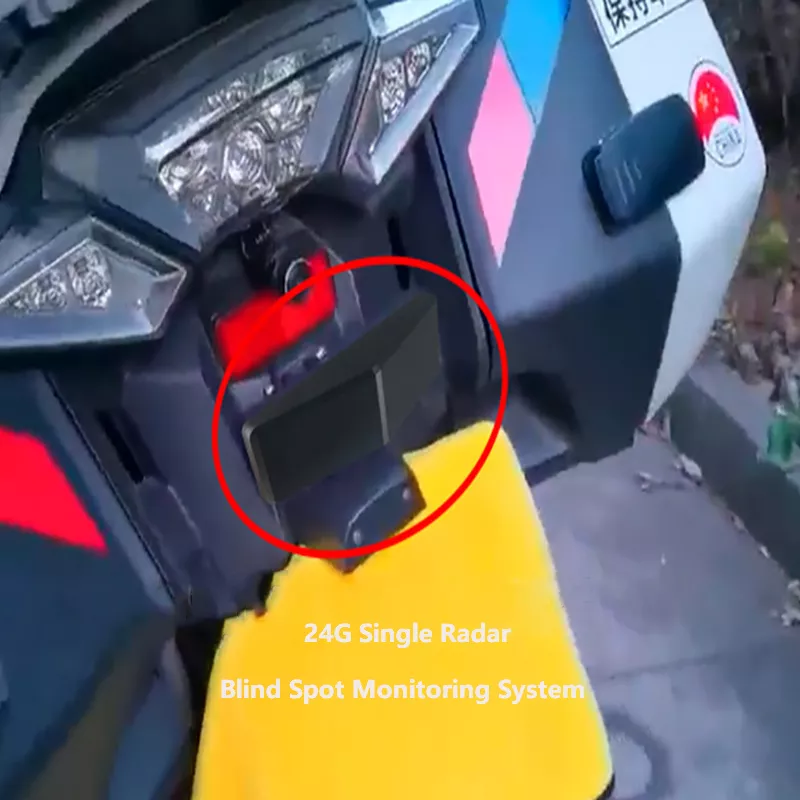

3. Installation Position: The radar is installed at the rear of the motorcycle with its signal facing towards the rear of the motorcycle, and the outlet is positioned downwards.
Installation Precautions
1. The blind spot radar should be installed according to the instructions regarding the angle.
2. Avoid installing the blind spot radar near the rear parking radar.
3. Avoid installing the blind spot radar in areas with irregular rear surroundings or large slopes.
4. When installing the radar, ensure that the blind spot radar is vertical to the ground.
5. The blind spot radar should be connected according to the plug orientation as indicated in the instructions.
What's Included in the Package
| Parameter | Value |
|---|---|
| Type | Blind Spot Detection Radar |
| Number of Sensors | 1 |
| Working Voltage | 9~16V |
| Power | 2W |
| Operating Frequency | 24Ghz |
| Horizontal Signal Angle | 士60° |
| Operating Temperature | -40°C ~ +85°C |
| Power Consumption | <2W |
| Antenna | Single Transmitter and Receiver |
| Warning Range | Lateral: -3 to +3 meters; Longitudinal: 0 to 15 meters |
| Warning Speed Range | From 0 km/h to 120 km/h |
| Waterproof Rating | IP67 |
| Distance Measurement Accuracy | Better than 0.18 meters |
| Max Detection Range | 15 meters |
| Compatible Vehicle | Motorcycle |
| Installation Method | Rear Vertical Installation |
| Material | ABS |
| Size | 25.5*20.5*7.2 cm |
| Weight | 460 g |
| Components |

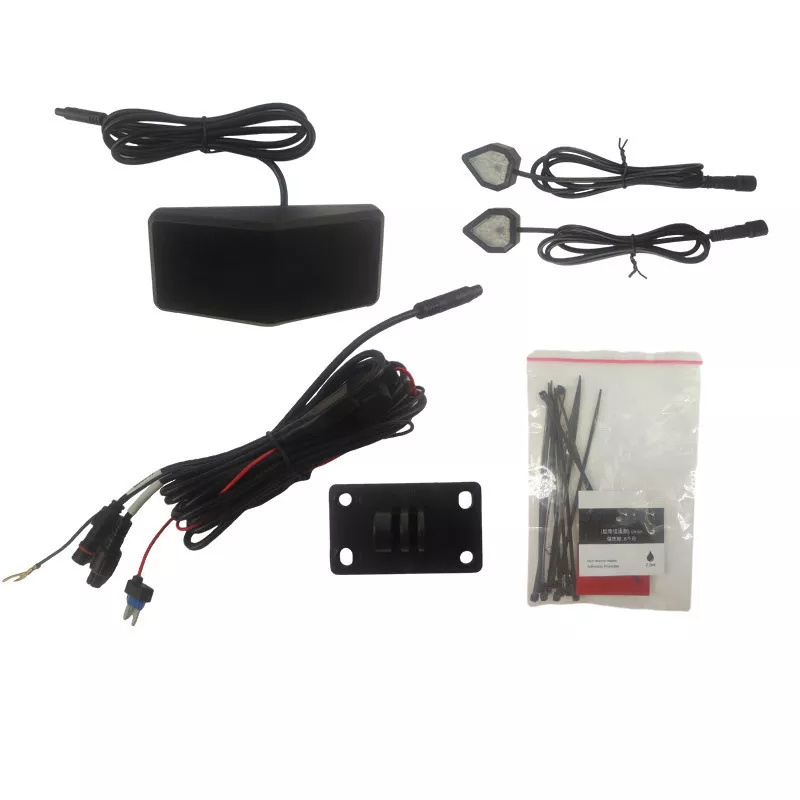

24 GHz Millimeter-Wave Radar * 1 Warning Indicator Lights * 2 2.9m Power Cable * 1 Mounting Bracket * 1 Accessory Kit * 1 User Manual * 1 |
Original: $86.00
-65%$86.00
$30.10Product Information
